Single Core FR / HR PVC Wire

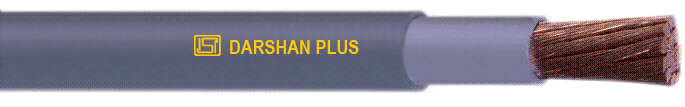

SINGLE CORE FR / HR PVC INSULATED FLEXIBLE COPPER CONDUCTOR (UNSHEATHED) HEAVY DUTY ELECTRIC WIRES VOLTAGE GRADE UP TO 1100 V.

Construction
Conductor :	High Purity , Bright electrolytic grade , annealed Stranded Conductor are Class 2 Type , Flexible Conductor are Class 5 type as per BS EN 60228 : 2005 ( Pre. BS 6360 ), IS 8130 , DIN VDE 0295
Insulation :	Primary – Natural FR / HR PVC Secondary – Skin Color coated PVC type – A
Color :	Red / Yellow / Blue / Black / Gray / White / Green
	** Any other Color on specific request can also be supplied

Nominal Cross Sectional Area of Conductor	No. / Nom. Dia. Of Cond. mm	Thickness of insulation mm	Approx. Overall Diameter mm	Current Carrying Capacity 2 Cables Single Ø		Resistance Max. Ω / Km. @ 200 C.
Nominal Cross Sectional Area of Conductor	No. / Nom. Dia. Of Cond. mm	Thickness of insulation mm	Approx. Overall Diameter mm	Conduit / Trunking Amps.	Unenclosed clipped directly to a surface or on cable trays Amps	Resistance Max. Ω / Km. @ 200 C.
0.50	16 / 0.20	0.6	2.20	4	5	39.00
0.75	24 / 0.20	0.6	2.45	7	8	26.00
1.00	32 / 0.20	0.6	2.50	11	12	19.50
1.50	30 / 0.25	0.6	2.90	15	16	13.30
2.50	50 / 0.25	0.7	3.55	20	22	7.98
4.00	56 / 0.30	0.8	4.30	27	29	4.95
6.00	84 / 0.30	0.8	5.20	35	37	3.30

Note : 1 – 90 Mtrs. Sequential Marking Supplied in 90 Mtrs. Length in Accretive Carton

SINGLE CORE FR / HR PVC INSULATED FLEXIBLE COPPER CONDUCTOR (UNSHEATHED) HEAVY DUTY ELECTRIC WIRES VOLTAGE GRADE UP TO 1100 V.

Construction
Conductor :	High Purity , Bright electrolytic grade , annealed Stranded Conductor are Class 2 Type , Flexible Conductor are Class 5 type as per BS 6360
Insulation :	Primary – Natural FR / HR PVC Secondary – Skin Colour coated PVC type – A
Color :	Red / Yellow / Blue / Black / Gray / White / Green
	** Any other Color on specific request can also be supplied


Nominal Cross Sectional Area of Conductor	No. / Nom. Dia. Of Cond. mm	Thickness of insulation mm	Approx. Overall Diameter mm	Current Carrying Capacity 2 Cables Single Ø		Resistance Max. Ω / Km. @ 200 C.
Nominal Cross Sectional Area of Conductor	No. / Nom. Dia. Of Cond. mm	Thickness of insulation mm	Approx. Overall Diameter mm	Conduit / Trunking Amps.	Unenclosed clipped directly to a surface or on cable trays Amps	Resistance Max. Ω / Km. @ 200 C.
10	140 / 0.30	1.0	6.70	46	51	1.91
16	224 / 0.30	1.0	7.80	62	68	1.21
25	350 / 0.30	1.2	9.70	80	86	0.780
35	490 / 0.30	1.2	10.90	102	110	0.554
50	396 / 0.40	1.4	13.20	138	145	0.386

Note : Sequential Marking of full Length, Supplied in 90 / 100 Mtrs. Length.

SINGLE CORE FR / HR PVC INSULATED FLEXIBLE COPPER CONDUCTOR (UNSHEATHED) HEAVY DUTY ELECTRIC WIRES VOLTAGE GRADE UP TO 1100 V.

Construction
Conductor :	High Purity , Bright electrolytic grade , annealed Stranded Conductor are Class 2 Type , Flexible Conductor are Class 5 type as per BS 6360
Insulation :	Primary – Natural FR / HR PVC Secondary – Skin Color coated PVC type – A
Color :	Red / Yellow / Blue / Black / Gray / White / Green
	** Any other Color on specific request can also be supplied

Nominal Cross Sectional Area of Conductor	No. of Wires / Nom. Dia. Of Cond. mm	Thickness of insulation mm	Approx. Overall Diameter mm	Current Carrying Capacity	Resistance Max. Ω / Km. @ 200 C
70	360 / 0.50	1.40	15.3	214	0.272
95	475 / 0.50	1.60	17.9	260	0.206
120	608 / 0.50	1.60	19.4	305	0.161
150	750 / 0.50	1.80	21.9	355	0.129
185	925 / 0.50	2.00	24.5	415	0.106
240	1221/ 0.50	2.20	28.0	500	0.0801
